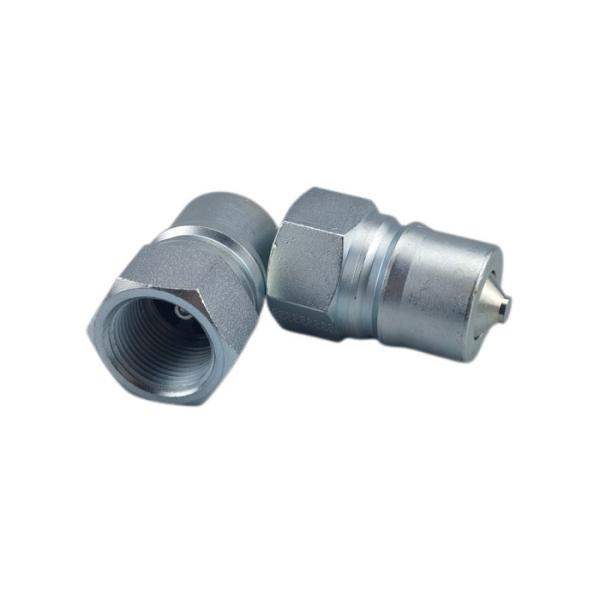

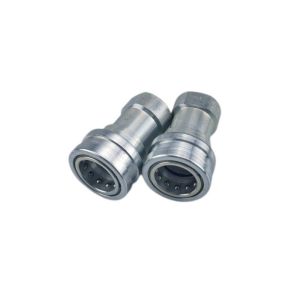

1/8 Inch Medium Pressure ISO7241B Quick Connect

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB-SP-1F
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	L/C,D/A,D/P,T/T,Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

1/8 Inch Medium Pressure ISO7241B Quick Connect

Looking for a different model or more sizes of ISO 7241-B couplings? Browse our complete product lineup here: ISO 7241-B Series Overview »

Medium-pressure High Performance Pneumatic And Hydraulic Quick Coupling

Standard Materials

Brass, zinc-plated steel, stainless steel
Seals: NBR, Viton, EPDM

CB-3 Series Quick Couplings are used across the spectrum of hydraulic applications. Primarily used with hydraulic fluid. CB-3 couplings are also used with chemicals, water, steam, and some gases.

Features

Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
Critical parts are hardened for durability.
Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.

1/8 Inch Medium Pressure ISO7241B Quick Connect

Body Size	PARTNO.	Thread	A	B	Across Flats
1/8"	CB-S1S-1FG	1/8-27	1.91	0.98	0.56
1/8"	CB-S1S-1FN	1/8-27	1.91	0.98	0.56
1/4"	CB-S2S-1FG	1/4-19	2.26	1.17	0.75
1/4"	CB-S2S-1FN	1/4-18	2.26	1.17	0.75
3/8"	CB-S3S-1FG	3/8-19	2.56	1.42	0.88
3/8"	CB-S3S-1FN	3/8-18	2.56	1.42	0.88
1/2"	CB-S4S-1FG	1/2-14	2.96	1.86	1.13
1/2"	CB-S4S-1FN	1/2-14	2.96	1.86	1.13
3/4"	CB-S6S-1FG	3/4-14	3.48	2.22	1.31
3/4"	CB-S6S-1FN	3/4-14	3.48	2.22	1.31
1"	CB-S8S-1FG	1-11	4.13	2.61	1.75
1"	CB-S8S-1FN	1-11	4.13	2.61	1.75

1/8 Inch Medium Pressure ISO7241B Quick Connect

Body Size	PARTNO.	Thread	C	D	E	HEX
1/8"	CB-P1S-1FG	1/8-27	1.26	0.65	0.44	0.56
1/8"	CB-P1S-1FG	1/8-27	1.26	0.65	0.44	0.56
1/4"	CB-P2S-1FG	1/4-19	1.52	0.87	0.56	0.75
1/4"	CB-P2S-1FN	1/4-18	1.52	0.87	0.56	0.75
3/8"	CB-P3S-1FG	3/8-19	1.76	1.01	0.61	0.88
3/8"	CB-P3S-1FN	3/8-18	1.76	1.01	0.61	0.88
1/2"	CB-P4S-1FG	1/2-14	2.03	1.30	0.76	1.13
1/2"	CB-P4S-1FN	1/2-14	2.03	1.30	0.76	1.13
3/4"	CB-P6S-1FG	3/4-14	2.36	1.52	0.71	1.31
3/4"	CB-P6S-1FN	3/4-14	2.36	1.52	0.71	1.31
1"	CB-P8S-1FG	1-11	2.85	1.88	0.97	1.63
1"	CB-P8S-1FN	1-11	2.85	1.88	0.97	1.63

Product Tags:

ISO7241B Brass Quick Connect

IATF16949 Brass Quick Connect

ISO9001 brass quick connect garden hose fittings

1/8 Inch Medium Pressure ISO7241B Quick Connect
